Setting product specifications is an iterative and challenging process, combining lab test data, historical data and educated guesses. All too often, the result is a set of product and process specifications that must be changed to meet manufacturing needs and that do not meet all customer requirements. To achieve specifications that are correct and defendable, the engineer must understand how the voice of the customer and the voice of the process interact, and must fully specify product through both specification limits (also called tolerance limits) and production capability, or Cpk.

Voice of the Customer

What the customer expects a product to do—what they are willing to pay for—is known as the “voice of the customer” (VoC). A customer’s expectations may not all be written or explicitly stated, and unwritten or unrecognized needs or wants can be even more important than the written ones. As we design a product, we first translate the VoC to engineering requirements and then flow the requirements down to subcomponents.

For simplicity, I will adopt the convention of referring to the specifications or tolerances as the Target Specification, the Upper Specification Limit (USL) and the Lower Specification Limit (LSL). The target, USL and LSL are the engineering translation of the VoC. I will refer to the measure being specified—length, mass, voltage, etc.—as a characteristic.

Voice of the Process

What we know about the parts actually produced—maximum and minimum, average, standard deviation, outliers, etc.—is known as the “voice of the process” (VoP). The VoP tells us the limits of our manufacturing abilities.

Suppose that we know from the production plant that the typical weight of our product is between 99.2 and 104.2 kg. This is the VoP; it may or may not be acceptable to the customer or fit within the USL and LSL. When we engage in statistical process control (SPC), we are listening to the VoP, but not the VoC.

The engineer must design to the VoC while considering the VoP.

Specification Limits

First, some definitions:

Target Specification

The desired value of the characteristic.

Mean Specification

The average of the upper and lower specification values—the value in the middle of the specification or tolerance range.

Nominal Specification

Used in different ways. May mean the target value of the specification. Sometimes the value printed in marketing literature or on the product, which may be the minimum or some other value.

Upper Specification Limit

The maximum allowed value of the characteristic. Sometimes referred to as the upper tolerance.

Lower Specification Limit

The minimum allowed value of the characteristic. Also referred to the lower tolerance.

Suppose that the customer has said that they want our product to weigh at least 100 kg. Since the customer will always want to pay as little as possible, a customer-specified lower specification limit of 100 kg is equivalent to saying that they are only willing to pay for 100 kg worth of costs; any extra material is added cost that reduces our profit margin.

If the customer does not specify a maximum weight, or upper specification limit, then we can choose the upper limit by the maximum extra material cost we want to bear. For this example, we decide that we are willing to absorb up to 5% additional cost. For our product, material and construction contributes 50% to the total assembled part cost, so the USL on weight is 110 kg.

Defect Rates and Cpk: Where VoC and VoP Intersect

Defect rates are expressed variously as Sigma, Cpk (“process capability”), Ppk (“process performance”), parts per million (ppm), yield (usually as a percent) or defects per million opportunities (DPMO). “Sigma” refers to the number of standard deviations that fit between the tolerance limits and the process mean. A 1-Sigma process has 1 standard deviation () between the mean () and the nearest specification limit. Cpk is a measure of the number of times that three standard deviations () fit between the mean and the nearest specification limit. Cpk is often used by customers, especially automotive OEMs. We can easily convert between Cpk, Sigma yield, ppm and DPMO.

Production tells us that historically, they usually see a range of about 5 kg in assembled part weight, with weights between 99.2 kg and 104.2 kg. With enough data, the range of observed data will cover roughly the range from [mean – 3 standard devations] to [mean + 3 standard devations], so this gives us kg and kg. From , , we have a 2-Sigma process. With this data, we could estimate the percent of parts that will be below the LSL.

Defect Rate Calculation

We can use this data to estimate the percent of product that will be out of the customer’s specification. We’ll assume that our process produces parts where the weight is normally distributed (having a Gaussian or bell-shaped curve).

Using Minitab, you can do this by opening the “Calc” menu, the “Probability Distributions” submenu, and choosing “Normal….” Then choose “Cumulative probability,” enter “101.7” for the mean and “0.83” for the standard deviation. Select “Input constant” and enter “100.” Click “OK.” The result in the Session Window looks like:

Cumulative Distribution Function

Normal with mean = 101.7 and standard deviation = 0.83

  x  P( X <= x )
100     0.02027

This is read as: the probability of seeing a weight X less than or equal to the given value x = 100 is 0.02, so we can expect about 2% of parts to be out of specification. This can also be done in Excel using NORMDIST(100, 101.7, 0.83, TRUE) or, in Excel 2010 and later, NORM.DIST(100, 101.7, 0.83, TRUE). In R we would use pnorm(100, 101.7, 0.83).

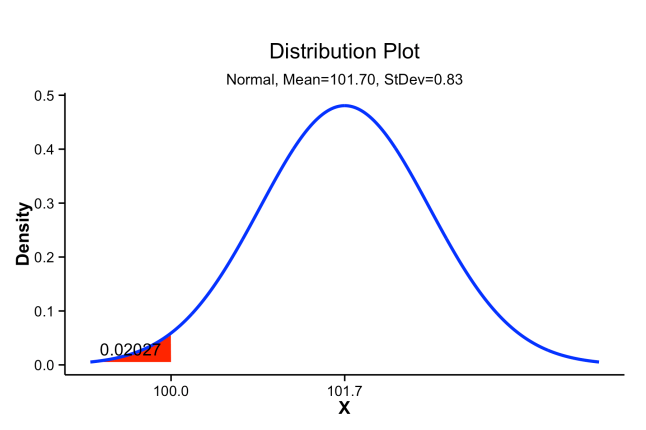

Minitab can also display this graphically. Open the “Graph” menu, select “Probability Distribution Plot…” Select “View Probability” (the right-most option) and click “OK,” On the “Distribution” tab, select “Normal” from the distribution menu and enter “101.7” for the mean and “0.83” for the standard deviation. Then switch to the “Shaded Area” tab, select “X Value,” “Left Tail” and enter “100” for the “X value.” Click on “OK” to obtain a plot like that below.

Of course, not all processes produce parts that are normally distributed, and you can use a distribution that fits your data. However, a normal distribution will give you a good approximation in most circumstances.

Cpk

The calculation for Cpk is:

where Cpu and Cpl are defined as:

If is centered between the USL and the LSL, then by simple algebra we have

which is often a convenient form to use to estimate the “best case” process capability, even when we do not know what is.

The combination of VoC-derived specification limits (USL, LSL and T) with process data ( and ) ties together the VoC and the VoP, and allows us to predict future performance against the requirements.

Multiplying Cp or Cpk by produces a measure of the process capability that includes centering on the target value, T, referred to as Cpm or Cpkm, respectively. These versions are more informative but much less commonly used than Cp and Cpk.

In the example, . We can then calculate the Cpk:

Acceptable values of Cpk are usually 1.33, 1.67 or 2.0. Automotive OEMs typically require Cpk = 1.33 for non-critical or new production processes, and Cpk = 1.67 or 2.0 for regular production. In safety-critical systems, a Cpk should be 6 or higher. The “Six Sigma” improvement methodology and Design For Six Sigma refers to reducing process variation until six standard deviations of variation fit between the mean and the nearest tolerance (i.e. Cpk = 2), achieving a defect rate of less than 3.4 per million opportunities. Some typical Cpk, and corresponding process sigma and process yield are provided in table [tblCpkSigmaYield].

Cpk	Sigma	Yield (max)	Yield (likely)
0.33	1	85.%	30.%
1.00	3	99.9%	90.%
1.33	4	99.997%	99.%
1.67	5	99.99997%	99.98%
2.00	6	99.9999999%	99.9997%

In the table, “Yield (max)” assumes that the process is perfectly stable, such that parts produced today and parts produced weeks from now all exhibit the same mean and variance. Since no manufacturing process is perfectly stable, “Yield (likely)” assumes additional sources of variation that shift the process by (e.g. seasonal effects, or differences in setups across days or shifts). This shift is a standard assumption in such calculations when we do not have real data about the long-term process stability of our processes.

Specification Limits and Cost

When parts are out of specification—that is, they may be identified prior to shipment as defective or nonconforming—they they can have four possible impacts:

• they must be reworked;
• they must be scrapped;
• they come back as warranty claims; or
• they result in lost customers (reduced revenue without reducing “fixed” costs).

For example, underweight or damaged injection-molded plastics might be melted and reprocessed, but this adds cost in capital for the added equipment to proces the parts and cost for extra electricity and labor to move, sort and remelt. Later in production, defective parts will have to be scrapped.

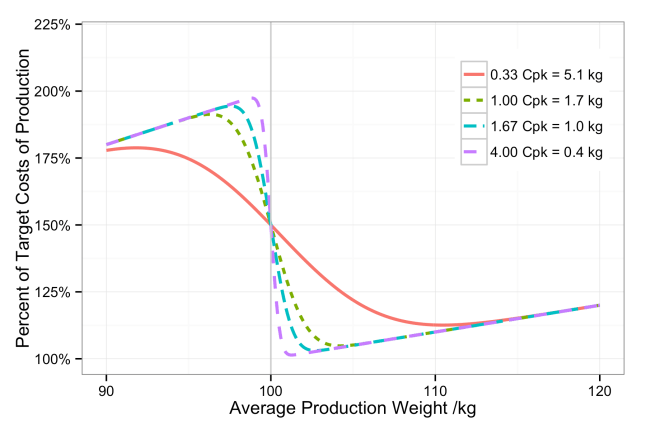

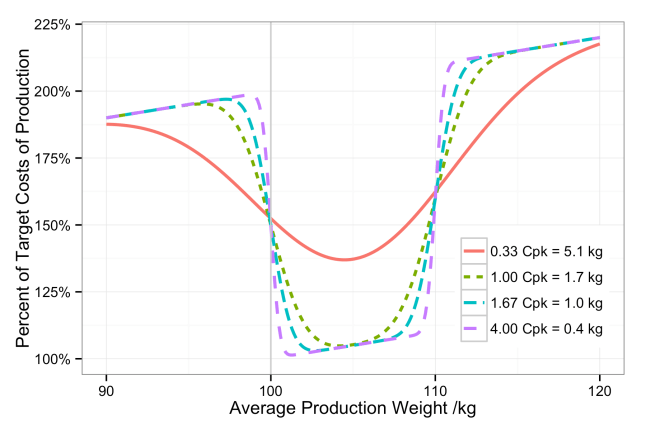

We can see, then, that a cost function can be associated with each end of a specification range. The specification limits must be derived from the VoC, but the VoP imposes the cost function. The figures below illustrate this for both one-sided and two-sided specifications.

The minimum of the cost function is a good place to set our target specification, unless we have some strong need to set a different target.

Variance of Components and Cpk

When a part characteristic is the sum of the part’s components, as with weight, then the variation in the part characteristic is likewise due to the variation in the individual components. However, while the weight adds as the sum of the components,

the variance in weight, , adds as the sum of squares

Since the given is the maximum allowed for the assembled part to meet the desired Cpk, this means that the component variances, , are an estimate for the maximum allowed component variance. Manufacturing can produce parts better than this specification, but any greater variance will drive the parent part out of specification.

Specifying Characteristics

Very often, only specification ranges (or tolerances)—the USL and LSL—are provided by engineering when designing parts. Almost as often, these ranges are based on a target value (derived from the VoC) with some “allowed” tolerance based on what manufacturing says they can achieve on the existing equipment and processes (the VoP). It should be clear from the above that a minimally-adequate part specification includes USL and LSL derived from the VoC and the minimum acceptable Cpk derived from both the VoC and the VoP. The inclusion of the minimum process capability is the only way to ensure that the parts are made within the target costs and at the target quality level.

The next challenge is to flow these requirements down to the components. Having laid the groundwork for the basis of requirements flow-down, I will look at a way to do this in a future post.

References

All graphs created in R using ggplot2.

• R Core Team (2014). R: A language and environment for statistical computing. R Foundation for
  Statistical Computing, Vienna, Austria. URL http://www.R-project.org/.
• H. Wickham. ggplot2: elegant graphics for data analysis. Springer New York, 2009.

Both product development and project planning often require making educated guesses. There are two models that I’ve seen for doing this. The first is to have a designated subject matter expert (SME) who provides The Answer. The second is to get a group of SMEs together to discuss and arrive at a consensus answer.

Under most circumstances, I’m not a fan of the first approach. Individuals are simply too fallible, too easily swayed by anecdotes rather than real data or too busy to consider a problem fully and in depth. The exception is when you are estimating work; then the SME is the person who will actually have to do the work, and their estimate is better than anyone else’s. The second solution often suffers from several other problems. Too many people working a problem can take a long time, answers can be driven by the most vocal or the most risk-averse members of the group and groups sometimes deliver bad answers due to diffusion of responsibility or other “group think” effects.

One solution to the problems of group decisions is to use Affinity Diagramming and the Analytical Hierarchy Process (AHP) to structure the problem, gather individual judgements of the alternatives, and then determine their relative values or importance. Affinity diagramming followed by AHP is incredibly powerful, and does a great job taking the individual bias out of the equation. I’ve used it with teams to rank the importance of product requirements, as a training exercise to accurately estimate the relative area of geometric shapes and personally to decide which car to buy. It works.

Unfortunately, AHP takes time, and for any but the simplest assessments, you really need custom software to support the process. Affinity diagramming can be done very effectively with Post-It notes, but the calculations of AHP cannot be easily set up in a program like Excel. It also requires discrete alternatives to choose from. For estimates of a single variable, such as lifetime, or other performance characteristics, I have had to develop a different approach.

The technique below works when you want to create a point estimate of a continuous variable. For instance, you might need to estimate product lifetime and establish a warrant period, or you might need to estimate a performance level that can be communicated to customers (implying a performance guarantee), or you might need to estimate the duration of a set of project activities. We can easily implement the calculations in Excel, R, or a similar tool.

Example

What we’re going to do is get the SMEs to individually estimate a range of possible results (low, most likely, high). Then we’ll generate triangular probability distributions from each estimate and finally combine those estimates. To get a robust result, we will account for the SME’s estimation of their own accuracy, and treat their different estimates discrete distributions when combining.

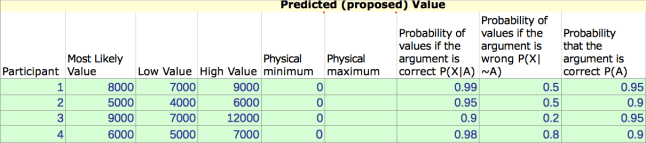

The below is the data entered by the SMEs.

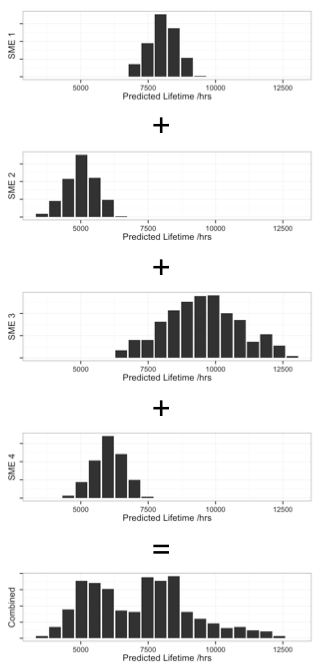

Using the above data, we can calculate triangular probability distributions for each, then combine them by treating them as discrete distributions. This produces the sequence of distributions, below.

We can then summarize the combined distribution with some useful values:

most likely:	7087
likely low:	4360
likely high:	10711
50% between	5162	and	8370

The process

1. Bring a few SMEs together. While the technique will work with any number, usually five to six is more than sufficient, and ten should be considered the maximum for useful input. We’ll call this number N so we can refer to it later.
2. Define the problem. Everyone should agree precisely what you are estimating.
3. Agree on a basis for the evaluation. This might be an agreed conceptual model of how the product behaves or a set of criteria or goals to evaluate against.
4. Collect three estimates—low, most likely, high—from each SMEs for the variable of interest (call this variable X).

Collecting a range is important; we need to be honest with ourselves that we don’t know what the value will actually be: there is uncertainty in the SME judgement—if we had the data to be more precise then we’d use that—and there’s variation to consider. Ranges allow us to derive probabilistic estimates that represent both the limits of our SME’s knowledge and the natural variation.

5. Ask each SME for their assessment of three probabilities on a scale of 0% to 100%:
   1. How likely are we to see the real data fall within this range if your reasoning or model is correct? This will usually be very high, like 95% or higher.
   2. How likely are we to see the real data fall within this range even if your reasoning has some flaw? This may also be high, but you can use 50% if the answer is “I don’t know.”
   3. How likely is it that the reasoning is correct? Again, this will usually be pretty high. That’s why they’re SMEs.

At this point, you have all the information that you need from the SMEs and can proceed to the calculations.

6. Using the three probabilities of the argument accuracy, calculate the values of X at end points for a triangular probability distribution.
7. For each SME’s guesstimates, use the triangle distributions to generate a large number of probabilities across the total range of possible Xs.
8. For each value of X used in the generation of the probability distributions, randomly choose a probability from one of the SMEs. For each value of X, we now have N probabilities that we treat as part of a discrete distribution.
9. Use the resulting combined distribution to determine values of interest, e.g. the median, fifth percentile, ninety-fifth percentile and so on.

From a diverse set of estimates, you now have a single, robust estimation for a variable. The resulting probability distribution will not be smooth, but you will be able to pull out single values that are meaningful and robust, such as the ninety-fifth percentile for duration estimates.

A few tips

How you ask for the estimates matters. Just asking for “low,” “middle” and “high” estimates will get you very inconsistent results. Likewise, asking for “worst-case” or “best-case” will often get you some pretty wild estimates. You want to ask questions like “how long would this take if many things went right,” “how long would the product last in more severe operating conditions” or “what is the most likely power available?” You don’t want the “middle” estimate, but a “most likely” estimate; you’re not shooting for half-way between the low and high estimates, but for a high-probability point estimate.

When some SMEs know more about the variable being estimated than others, you could also weight their judgements. This weighting is used in the second to last step by adjusting the probability of randomly selecting a value from each SME’s probability distribution.
